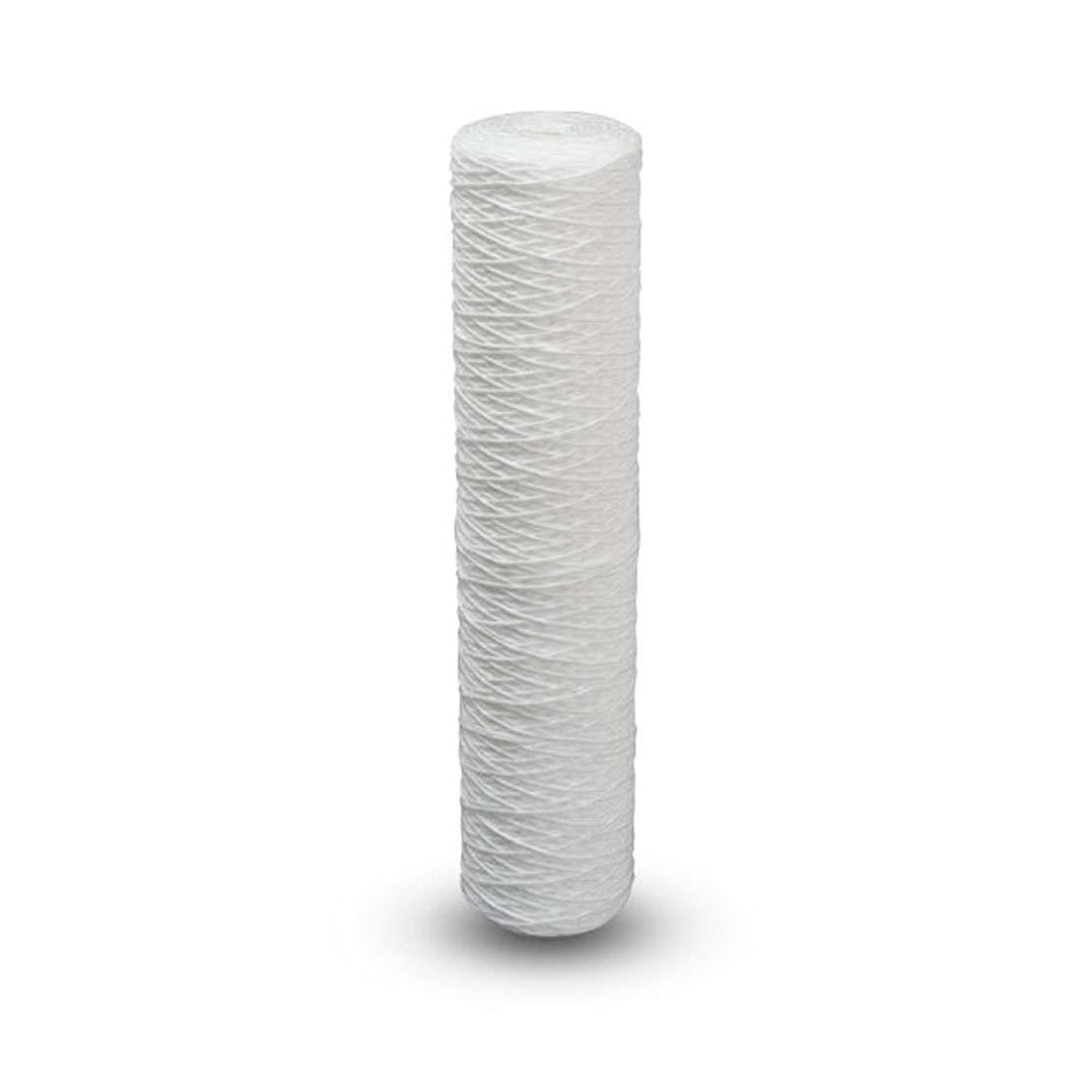

Woven Cartridge 20″ Big Blue

Woven cartridge filters designed for Big Blue housings are used in water filtration systems to remove  sand, silt, dirt and rust particles.

These cartridges are typically made from materials such as polypropylene and are characterized by their high filtration capacity, durability, and suitability for a wide range of applications.

Features:
  • Used in the pre-filtering stage
  • High dirt holding capacity
  • Removes:
    • Rust particles
    • Scale particles
  • Size: 20″ Standard

Woven cartridges for 20" Big Blue housings are an effective and reliable solution for sediment filtration in high-capacity applications.

Their robust design, high dirt-holding capacity, and versatility make them suitable for a wide range of residential, commercial, and industrial uses.

Regular maintenance and proper installation ensure these cartridges provide consistent, high-quality water filtration, protecting both downstream equipment and the end user's water quality.

Additional information

Material:

Made from high-quality woven polypropylene or other synthetic fibers that provide excellent chemical resistance and durability.
Free from binders, adhesives, and surfactants, ensuring no additional contaminants are introduced into the water.

Woven Design:

The woven structure provides a large surface area for particle capture and high dirt-holding capacity.
Typically features a gradient density design where the outer layers capture larger particles, and the inner layers capture finer particles.

Mechanical Filtration:

Water flows through the woven fibers, where particles are trapped within the layers of the material.
The gradient density design ensures that larger particles are captured on the outer layers, while smaller particles are trapped further inside.

High Dirt-Holding Capacity:

The woven design allows for a significant amount of particulate matter to be held within the cartridge, extending the filter’s life and reducing the frequency of replacements.

Effective Sediment Removal:

Capable of removing a wide range of particulate matter, including sediment, sand, dirt, rust, and silt, protecting downstream filters and equipment.
